Epiphone Electra needs a heart transplant

Posted: January 25, 2014 in Uncategorized

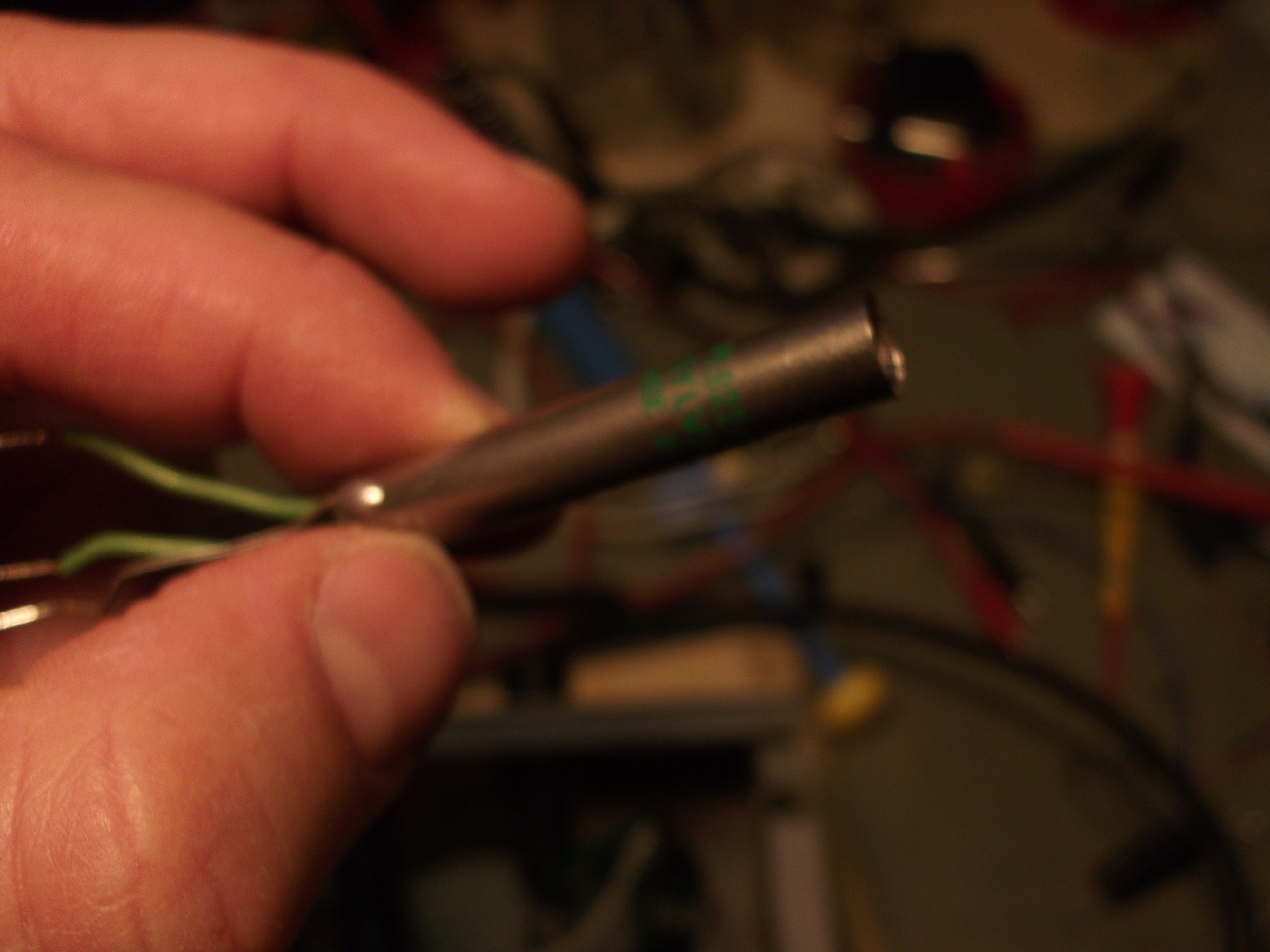

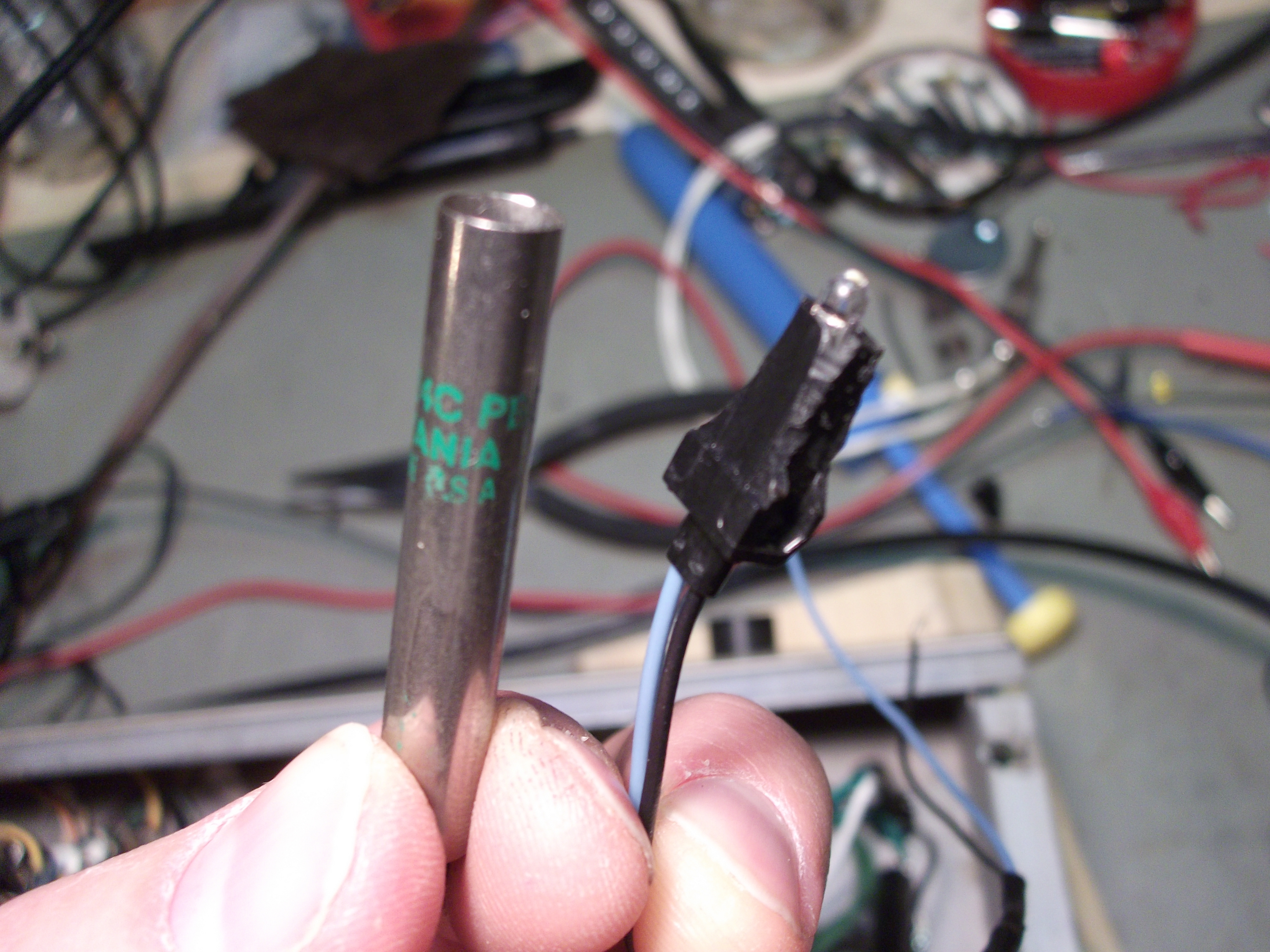

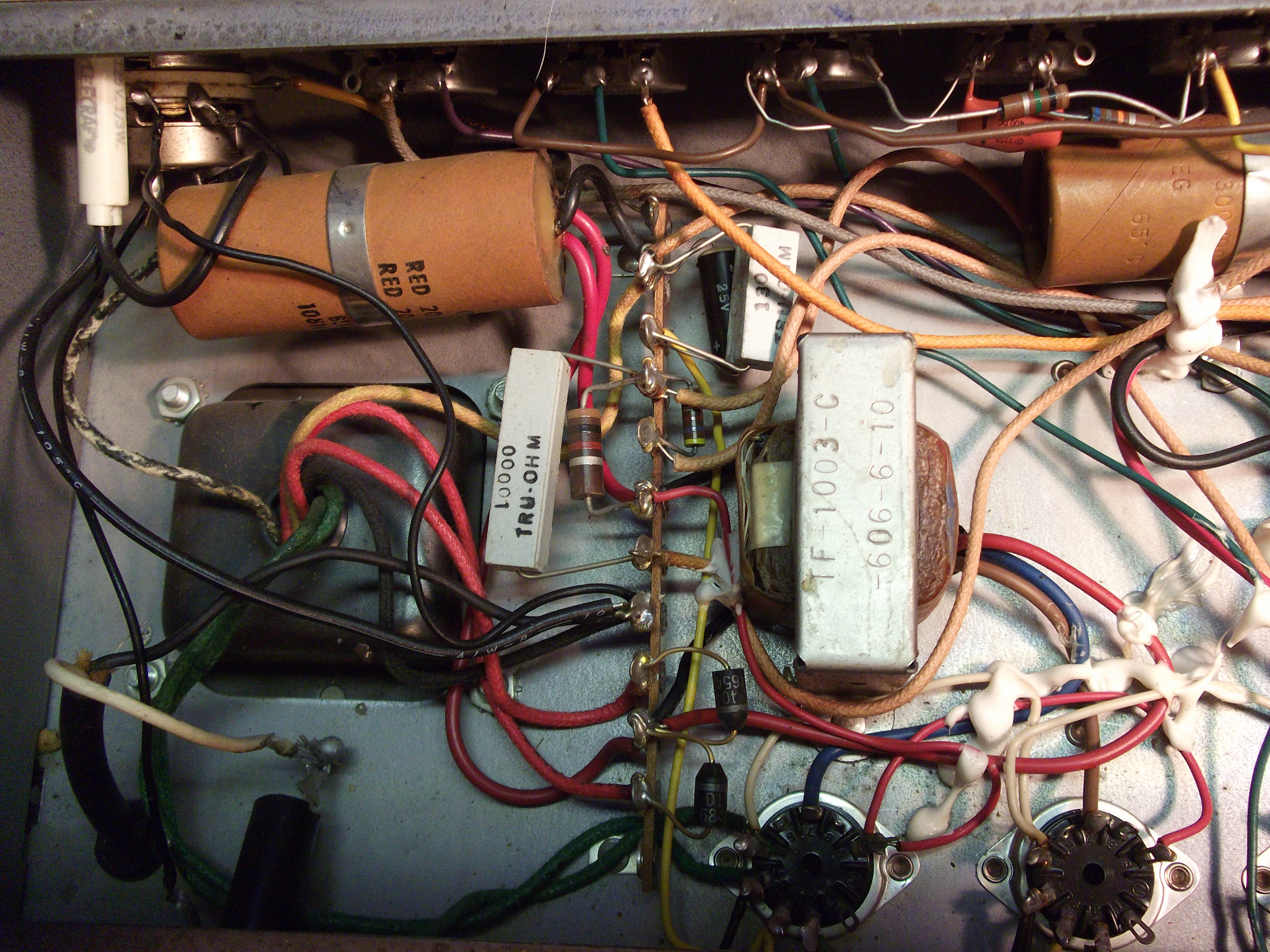

This Epiphone had an issue with a bad photocell/lamp combination – a special optocoupler that is no longer available – and so no tremolo.  I managed to retrofit a new lamp into the original assembly and only had to make sure the current driving it was within spec and still performed well in the tremolo circuit.
